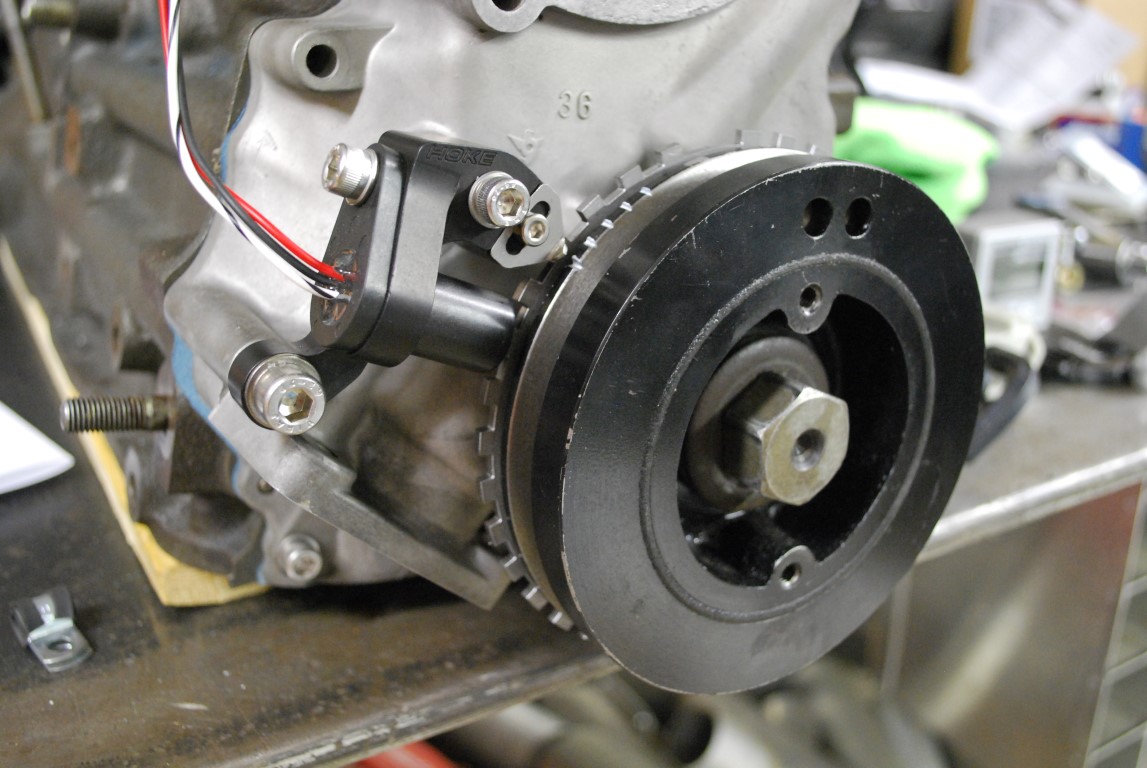

DSC_0449 (Medium).JPG
DSC_0455 (Medium).JPG
DSC_0451 (Medium).JPG
DSC_0449 (Medium).JPG
DSC_0455 (Medium).JPG
DSC_0451 (Medium).JPG

L-Series - Crank Angle Sensor Kit

from 37.50

L28 Crank Angle Sensor Kit for Your L-Series Megasquirt Conversions!

Description:
Quantity:
Add To Cart

Please see the product developement page for more information regarding the original kit design for the euro pulley.

There are now versions to support two different dampers; One for the Performance Products Euro Damper, and another for the Stock 240z Damper.  The euro damper can be purchased new and is only availble as a single groove design, the 240z damper was availble with two groove but must be sourced used.  Please note the crank trigger is fixed and not adjustable, it was designed specifically for these dampers and can not be retrofitted to other units.

Damper Dimensions:

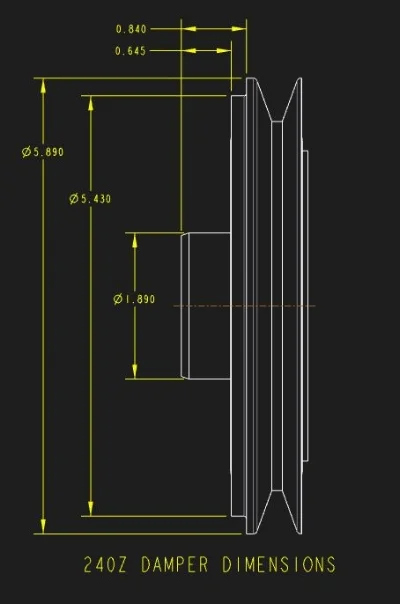

240z Pulley Dimensions.JPG
Euro Pulley Dimensions.JPG





Included:

  • Crank Angle Sensor Mount - 6061-T651  Billet Aluminum Black Anodized

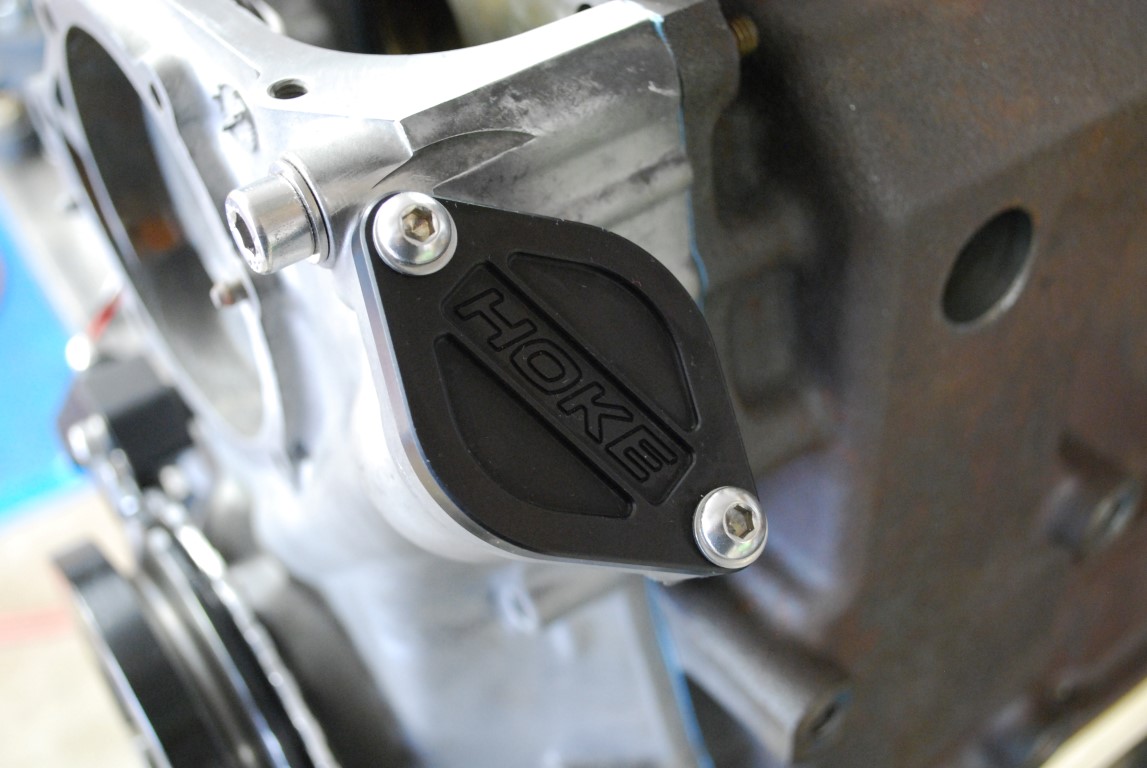

  • Distributor Block-Off Plate - 6061-T651 Billet Aluminum Black Anodized
  • Timing Indicator - 304 Stainless Steel

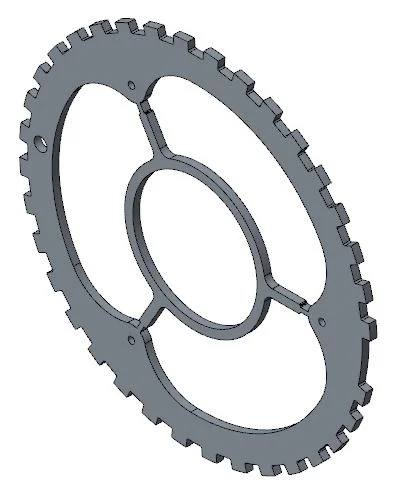

  • Trigger Wheel 36-1 - 1018 Steel (Contact for custom wheel if needed)
  • Stainless Hardware

Required:

  • Single Groove Euro Damper - Professional Products Powerforce Damper (Availible from MSA, Jegs, Etc)
  • Or OE 240Z Damper That Matches Provided Dimensions
  • Bolt on Hall Sensor Mount (Availible from DIYautotune)
